1. Premium Structure & Ergonomic Design

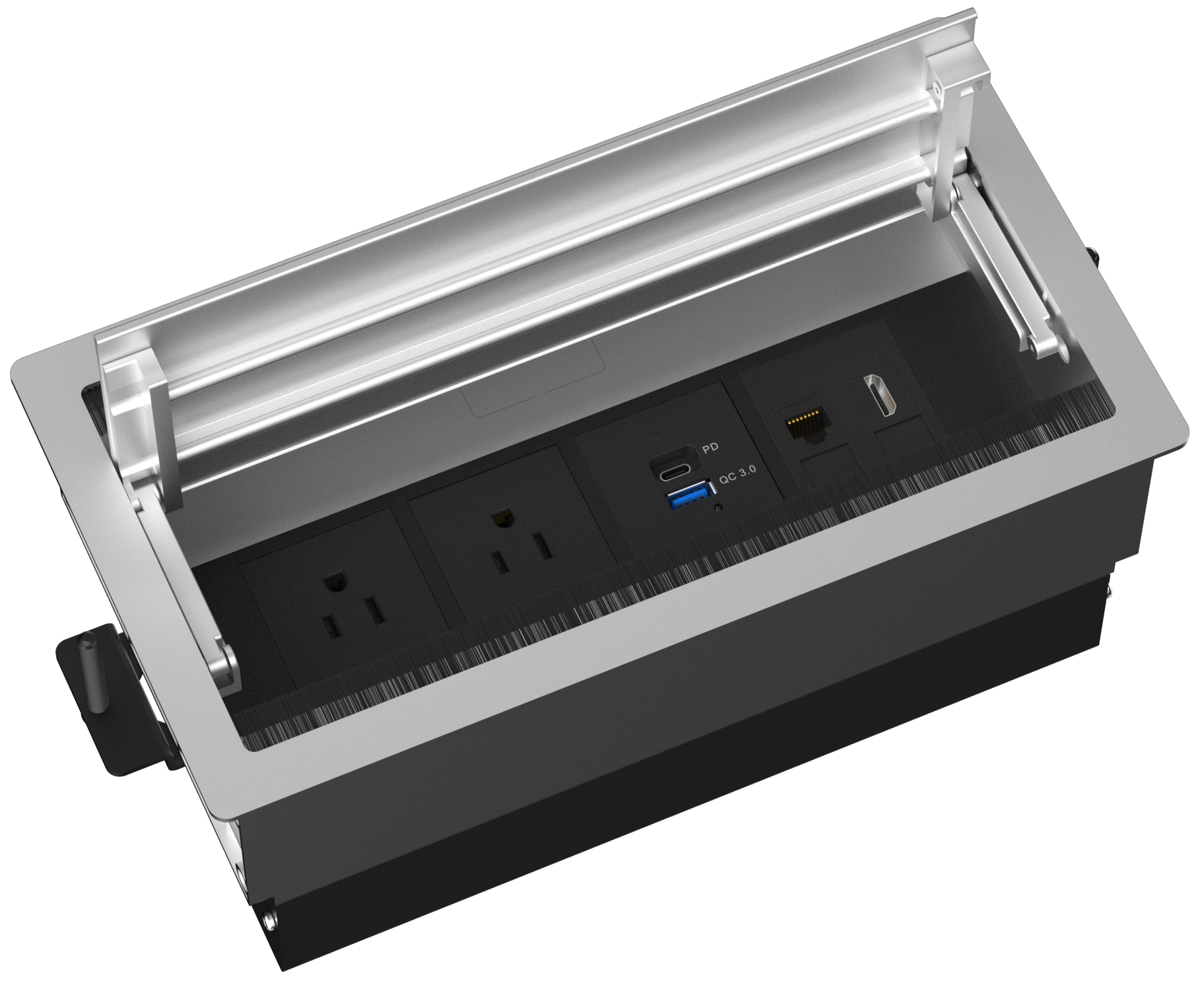

Dual-Side Flip Cover for Flexible Usage
Equipped with an innovative two-way flip top cover, this hub can be opened from either side to access ports freely, adapting to different seating positions and usage angles in meetings and daily work. Simply press the cover down to close it when not in use; the flush-mounted design conceals all ports completely to maintain a neat and streamlined desktop appearance. Built-in brush strips block dust and debris from entering the interior to extend the product’s service life. A dedicated cable exit hole is reserved for organized cord management, keeping all wires tidy and secured.
Wide Compatibility with Various Desktop Thicknesses
This unit fits desktops ranging from 15mm to 65mm in thickness with two customized mounting solutions. For desktops 15mm to 55mm thick, use four ST2.9×10 Phillips pan head screws to fasten the mounting brackets. For thicker desktops between 55mm and 65mm, apply ST3.9×16 screws for enhanced stability and firm installation.
We offer three standard models with standardized cutout dimensions to match different port quantities and layout requirements. You may select the proper model based on your table size and functional demands:
2. All-Round Functional Performance for Workplace Needs
Tailored for business meetings and daily office work, this integrated hub delivers multiple practical functions to cover diverse workplace requirements:
- Reliable Power Supply: Standard power outlet modules deliver stable power output with strong load capacity. It can power laptops, projectors, conference hosts, printers and other high-power office devices continuously, getting rid of bulky temporary power strips and tangled cords.
- High-Definition AV Transmission: Built-in HDMI ports support smooth high-definition signal transmission. Users can connect laptops or tablets to conference displays and projectors instantly for screen sharing, business presentations and video conferences with zero lag.
- Gigabit Network Connectivity: Integrated Cat6 network ports provide stable gigabit network access for computers, conference terminals and wireless access points. It ensures uninterrupted online meetings, remote collaborations and large file transfers.
- Convenient USB Charging: Equipped with USB charging ports to power up smartphones, tablets, wireless earbuds and other mobile gadgets directly. No extra chargers are required, bringing greater convenience to employees and attendees.
3. Safety Specifications & Easy Installation
Strict Safety Standards
This product is designed for indoor use only and complies with commercial electrical safety regulations. Its optimized internal circuit structure provides solid insulation to prevent electric leakage and short circuits. The closed flip cover prevents accidental contact with exposed ports, as well as dust and minor water splashes. If any malfunctions occur, please contact a licensed professional electrician for inspection and repair to guarantee safe operation at all times.
Simple & Efficient Installation
The split bottom box design streamlines the whole installation process, which can be completed quickly with basic hand tools.
- Cut a rectangular opening on the desktop following the size corresponding to your chosen model.
- Remove the pre-punched holes on the panel, detach the bottom box and install functional modules into the mounting frame.
- Run the power cord through the reserved cable hole and complete wire connections.
- Feed the power cord through the desktop cutout, embed the hub into the opening and adjust it to stay fully level.
- Cut a 5mm-thick trim panel using the same material as the desktop and attach it to finish the installation.
This hub works well with most mainstream desktop materials, including solid wood, panel boards and fireproof boards. All matching screws and mounting brackets are included for sturdy and long-lasting installation.
4. Application Scenarios
- Corporate Meeting Spaces: Large and medium-sized conference rooms, multimedia lecture halls, video conferencing rooms and training classrooms, meeting the demands for multi-device power supply, network access and screen sharing during group meetings.
- Premium Office Areas: Executive desks, private offices and open collaborative zones to create a minimalist, upscale and well-organized working environment.
- Commercial Public Spaces: Hotel business suites, negotiation areas, exhibition reception counters and government reception rooms to elevate overall service quality and professional ambiance.
